Efficient. Resilient. Innovative.

VTOL Fixed Wing · Class 3<br/>AI-Powered.

Majestic, isn't it? Well, it wasn't just built to be elegant. It's a true marvel of modern aircraft technology. Let us tell you why. BVT516 is a Class 3 VTOL (Vertical Take-Off and Landing) Fixed Wing, powered by two high-capacity batteries and controlled by an intuitive flight controller that can be commanded either by a wireless local radio control or by a remote-control application.

180

min

Maximum Flight Time

120

km/h

Maximum Speed

Max. Take-off Weight

BVT516 fixed-wing VTOL drone in a three-quarter view, twin booms carrying four lift rotors and a pusher propeller at the tail

The best of both worlds.

44.4

Voltage

km/h

Wind Tolerance

2 × 20,000

mAh

Battery

Position Accuracy

Mission-critical connectivity,<br/>by design.

Equipped to use multiple communication links — WiFi, Bluetooth, 4G, 5G — with unlimited cellular range where coverage exists, and a point-to-point radio link up to 100 km.

To overcome connectivity challenges, especially in GNSS-denied environments, it ensures redundancy to boost reliability and effectiveness in the field.

Wi-Fi

Bluetooth

Modular Radio Link

GNSS-Denied Ready

The mission doesn't wait.<br/>Neither does the BVT516.

WATCH THE FULL VIDEO

Toolless and fast deploy.

Missions don't wait, and this drone is always ready to go. Designed for rapid setup and effortless transport, it requires no tools for assembly. Isn't that a genuinely mission.ready, versatile solution?

Max. Payload Weight

Portable

1,2m length transport box

Modular

Payload Integration

Operational versatility.

Defense

BVT516 fixed-wing drone flying alongside a naval vessel under way at sea, coastline visible in the distance

The BVT516 can be equipped with advanced sensor technologies to assist military personnel in gathering intelligence, monitoring enemy movements, and assessing battlefield conditions with precision and efficiency.

Safety

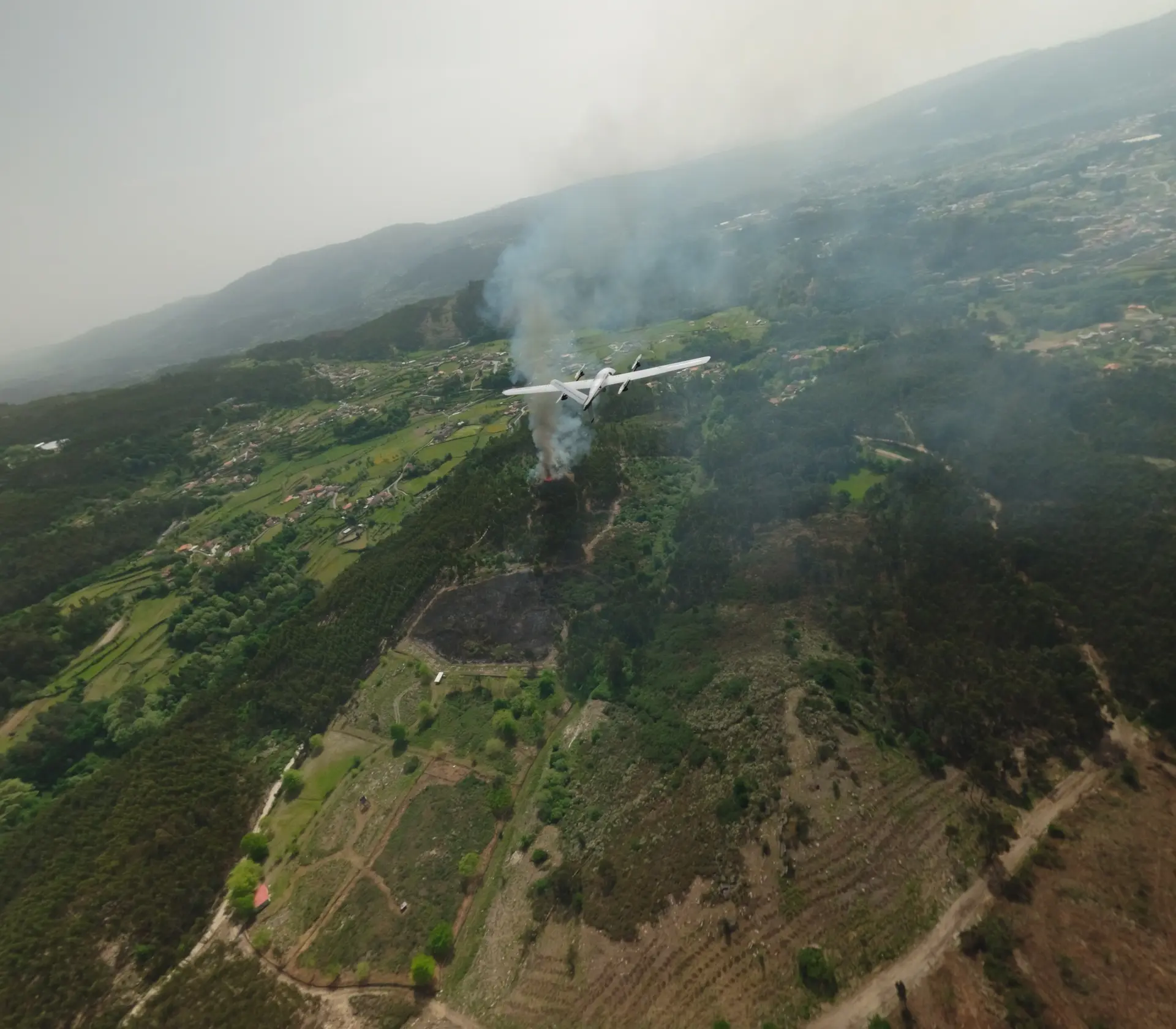

BVT516 fixed-wing drone banking above a wooded valley where smoke rises from a fire, villages and burnt ground below

Real-time aerial assessment for maritime operations, offshore asset monitoring, and environmental surveillance missions, covering large areas with accuracy and speed.

Energy

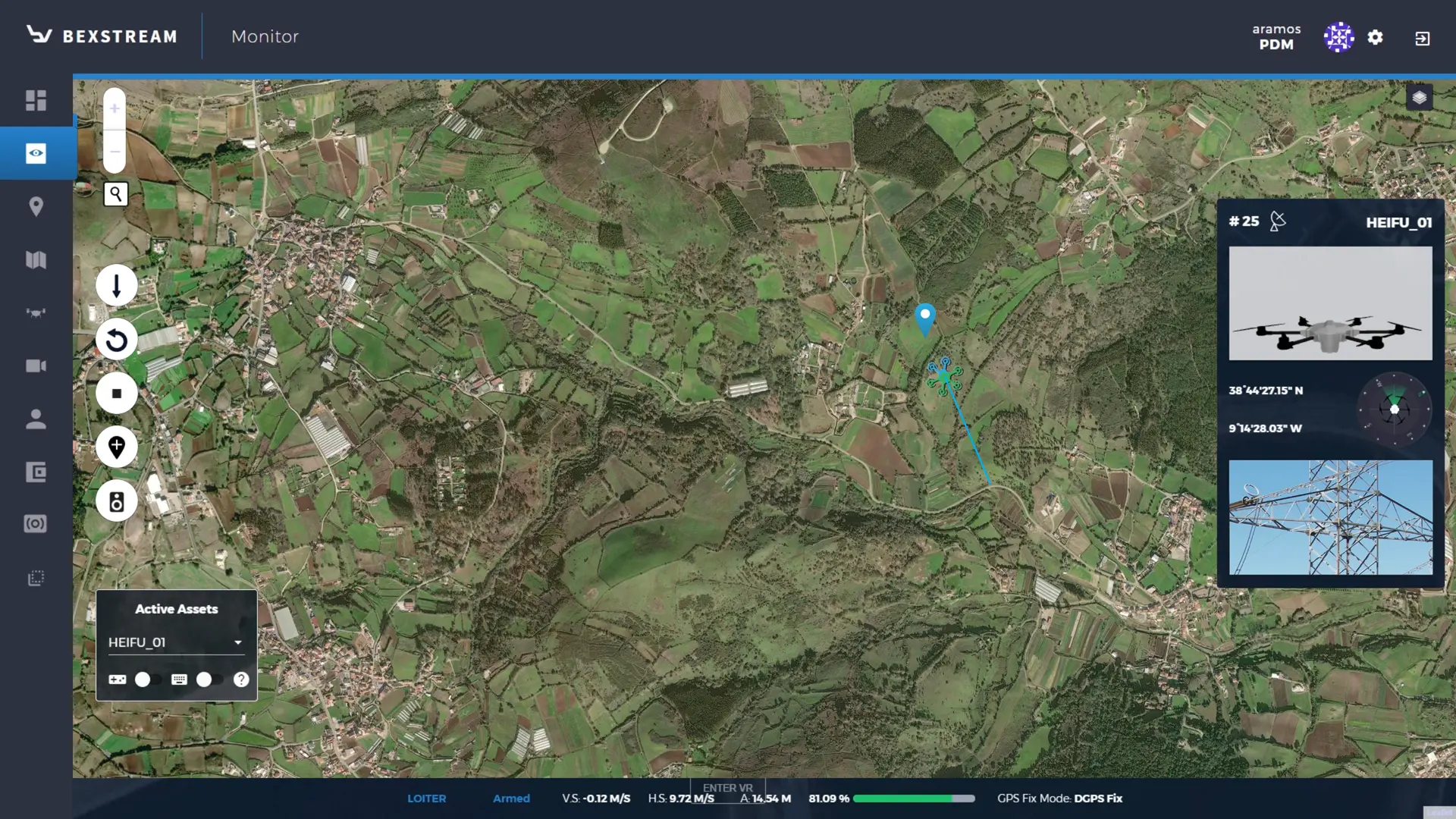

beXStream Monitor screen tracking a drone over farmland, with telemetry, coordinates and a camera thumbnail of a power pylon

Equipped with specialized sensors, the drone can reach inaccessible areas, providing accurate visual data to assess the condition of power lines across large distances.

Oil & Gas

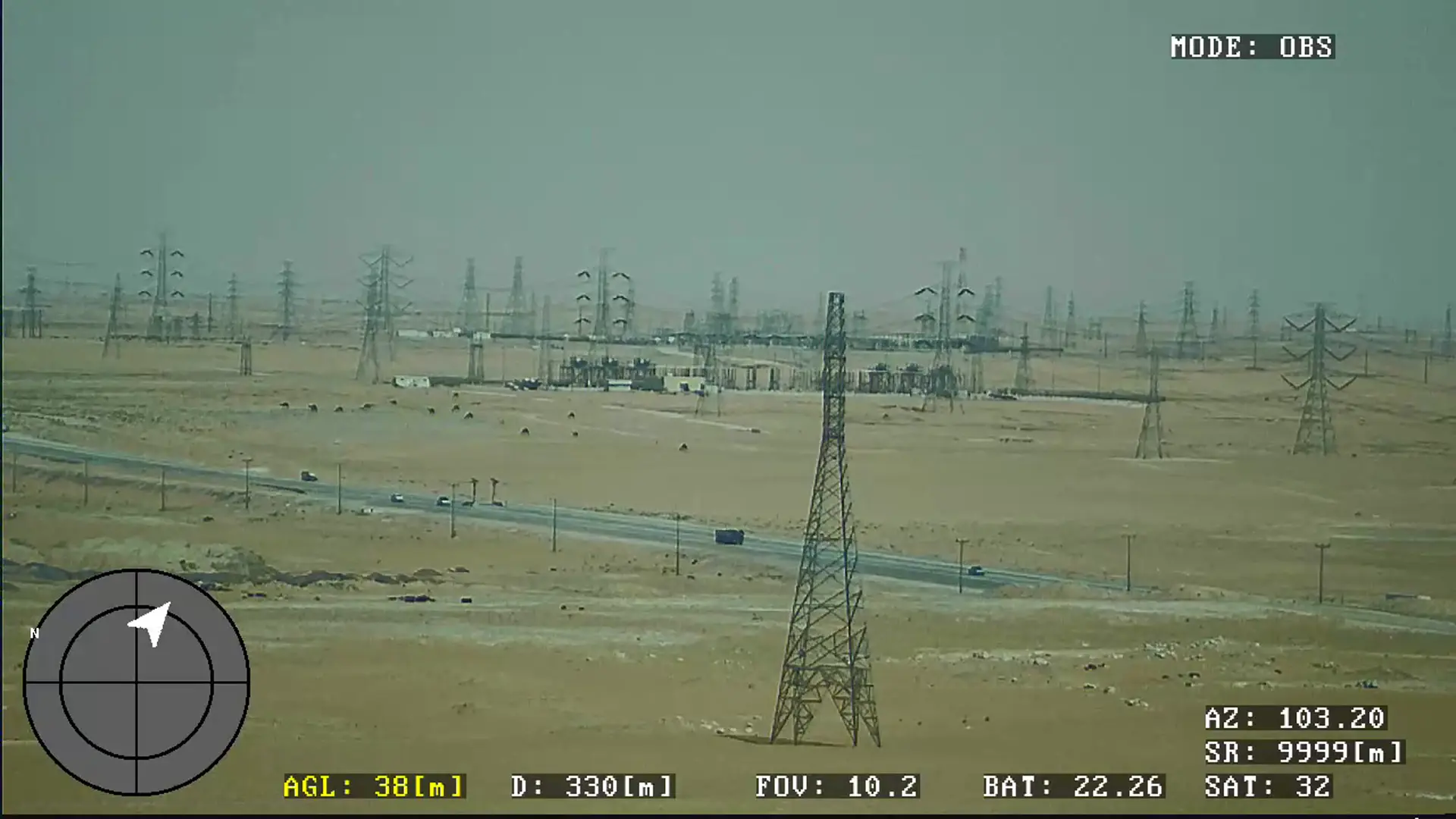

BVT516 camera feed over desert terrain showing a transmission line corridor, a substation and a highway with traffic

Through high-resolution aerial imagery for visual inspection and thermal imaging that can indicate leaks or equipment faults, gain valuable insights into oil & gas pipeline conditions. This data enhances safety protocols, ultimately improving efficiency in maintenance processes.

Every detail. Documented.

BVT516 — Class

BVT516 — Dimensions

1450 x 3000 x 630 mm

BVT516 — Portable box

l: 1200 x w: 800 x h:600

BVT516 — MTOW

16 kg

BVT516 — Payload weight

2 kg

BVT516 — Battery capacity

40000 mAh (2 x 20000 mAh)

BVT516 — Battery weight

6 kg (2x 3kg)

BVT516 — Battery Type

12S Li-Ion

BVT516 — Nominal battery voltage

44.4 V

BVT516 — Maximum linear speed

20 Km/h (quad); 120 Km/h (wing)

BVT516 — Maximum supported wind speed

35 Km/h (quad); 50 Km/h (fixed wing)

BVT516 — Autonomy

180 min

BVT516 — Quick payload changeover

✓

BVT516 — Wireless links

WiFi ; Bluetooth ; 3G ; 4G ; 5G

BVT516 — Interfaces for peripherals

Ethernet / I2C / CAN

BVT516 — Multiple radio options

L band / S band / C band

BVT516 — Radio Distance

12Km / 30Km / 100Km (according to chosen radio)

BVT516 — GNSS constellations

GPS L1/L2, GLONASS, QZSS, Beidou, GALILEO

BVT516 — Operating Temperature

-10°C/+55°C

BVT516 — Relative humidity

<95% non-condensing

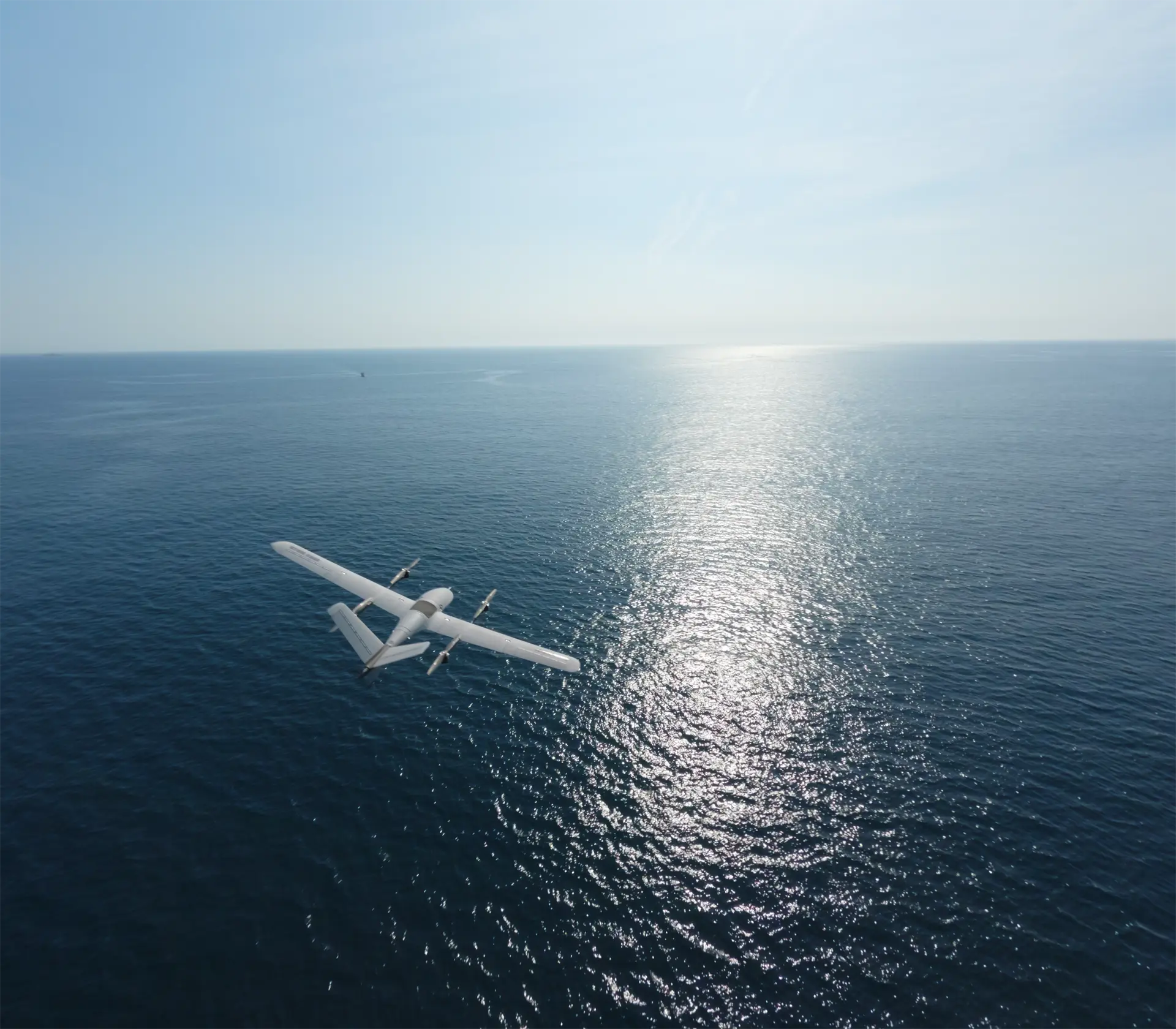

BVT516 seen from above flying low over open sea, sunlight glinting off the water towards the horizon

BVT516 in level flight above a eucalyptus forest, hazy hills receding into the distance behind it

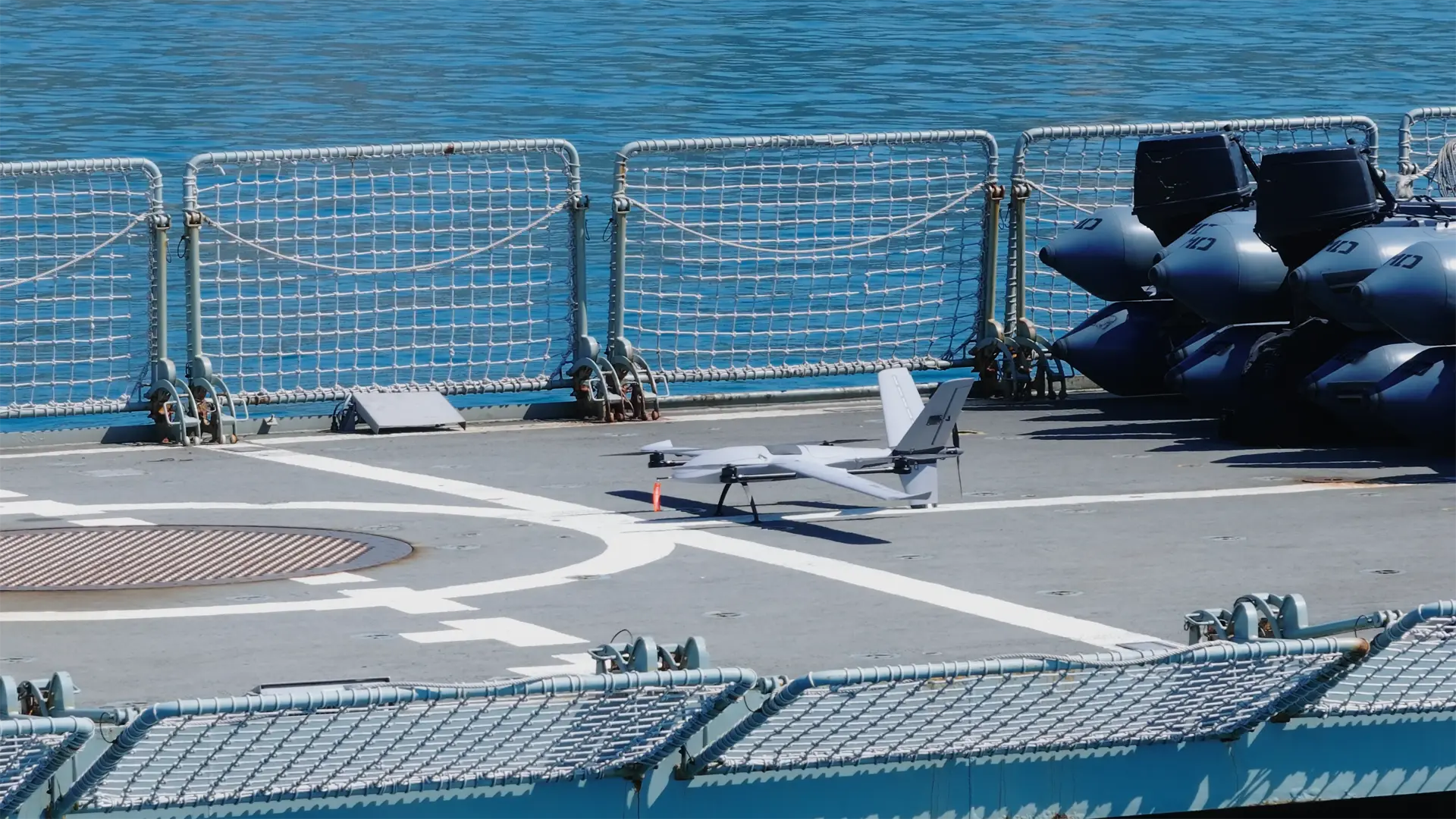

BVT516 fixed-wing drone parked on a warship flight deck, safety netting and inflatable boats along the rail

Compatible payloads.

Camera Pack RTS5

Camera Pack AS 360º

Camera Pack OHD95

Camera Pack Multispectral

Sony ILX-LR1 RGB camera — compact black body fitted with a Zeiss 35 mm lens

RGB Camera: Sony ILX-LR1

Want to know more about other payload possibilities?

Control all your assets with beXStream.

Our beXStream web platform enables users to remotely plan and track all drone movements via a web application. The on-board computer supports the use of ROS (Robot Operating System), an open platform for integrating diverse inputs and running multiple algorithms, such as image processing, data relaying, and others.

Whether managing a small number of vehicles or coordinating complex, multi-vehicle operations across large areas, beXStream provides all the tools needed. A prominent solution that provides unparalleled options to optimize performance and drive success through the collaborative autonomous systems it creates.

Remote mission planning

Real-time monitoring

Multi-vehicle coordination

DISCOVER BEXSTREAM
